Backup Generators Cummins Diesel Generator Set 200kva 150kw For Houses

Product Categories
Xiamen Ai Power Technology Co., Ltd.
Contact Now

Backup Generators Cummins Diesel Generator Set 200kva 150kw For Houses

  • 1
  • 2

Brand Name : Ai Power

Model Number : A150

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 Unit

Price : USD 11000 to 12000 Per Unit Negotiable

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 200 Units Per Month

Delivery Time : 30 Days

Packaging Details : plywood or plastic film

Prime Power : 150kw/188kva

Cummins Engine Model : 6CTA8.3-G1

Leroy somer alternator Model : LSA44.3VL13

Output type : AC Three Phase

Protection : IP23

Rated current : 400A

Cooled type : Water cooled

Excitation System : Shunt

Governor Type : Electric Governor

ATS : Depand on Customer Need

Contact Now

Backup Generators For Houses 200kva 150kw Cummins Diesel Generator Set On Sale

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.

Frequency
50HZ
Voltage
220/380V, 230/400V, 240/415V
Power range
65KVA Prime
Engine
Cummins 6CTA 8.3-G2 Series
Alternator
Leroy somer, Stamford, Meccalte etc.
Controller
DSE6120, DSE7320, AMF20, AMF25
Genset type
open generator, silent genset, container power generator, mobile diesel generator
Option
ATS, synchronization system

Diesel Engine specification

Engine model 6CTA 8.3-G2
Engine speed (rpm)
1500
Engine output prime(kWm)
163
Engine output standby(kWm)
180
4Engine Type
6L Cylinder
Induction system
Turbocharged and aftercooled
Bore x Stroke (mm)
102 * 120
Type of combustion chamber
38
Number of valve per cylinder.
114:135
Starting mode
Electronic

Brushless AC Alternator

Alternator manufacturer
Leroysomer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
LSA44.3VL13
Control system
AREP
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single

Three phase diesel power 25kva 20 kva soundproof USA DCEC engine generator price

Engine model
6CTA8.3-G1
Engine speed (rpm)
1500
Engine output(kW)
163KW
Standby power rating
204KVA
Prime power rating
200kva
Type
4-Cycle, In line, 6 Cylinder
Aspiration
Turbocharged and aftercooled
Borer * Stroke (mm)
114* 135
Displacment (litre)
8.3
Compression Ratio
17.3:1
Products Show

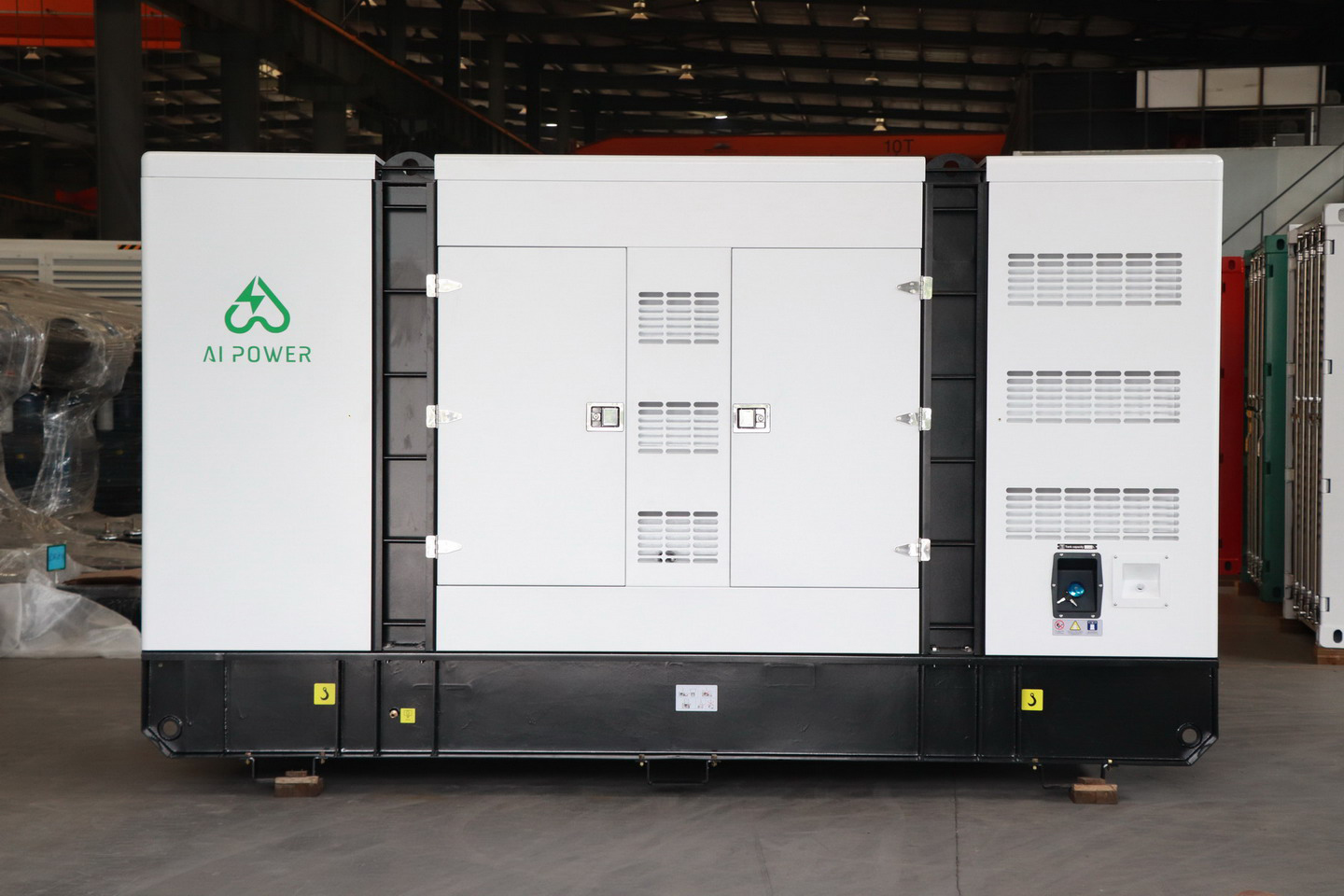

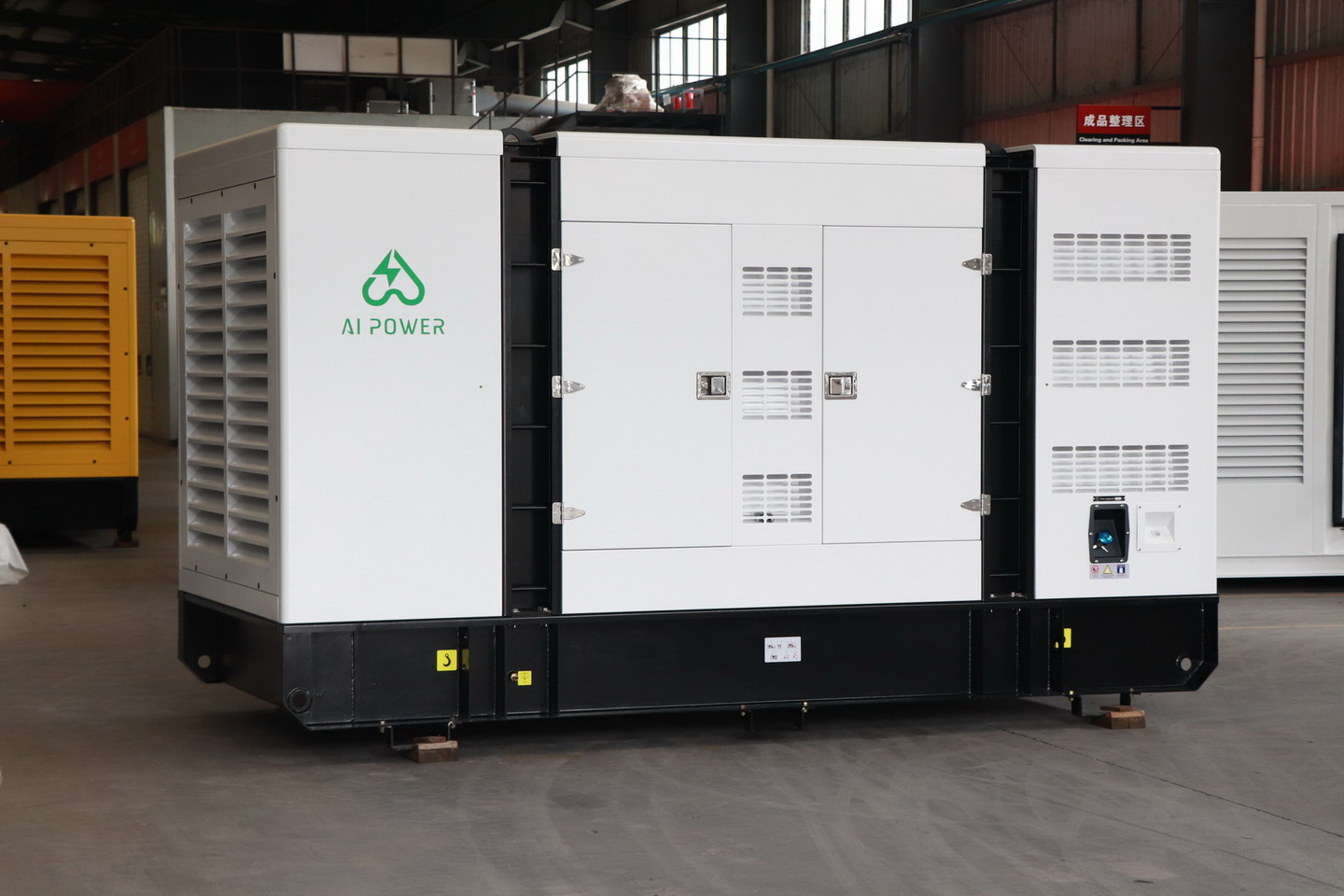

Backup Generators Cummins Diesel Generator Set 200kva 150kw For Houses
Backup Generators Cummins Diesel Generator Set 200kva 150kw For Houses

Generator Details

Backup Generators Cummins Diesel Generator Set 200kva 150kw For Houses

Open Diesel Generator:

1.Famous brand engine couple with high quality alternator

2.Large size cooling radiator

3.Heavy duty steel base frame
4.Strong anti-vibration mat
5.Standard free maintenance battery
6.AC alternator for battery charger
7. Heavy-duty air filter, oil filter, water filter
8.Famous brand controller and breaker
9.Optional fuel tank, silent canopy, ATS, synchronization panels.
